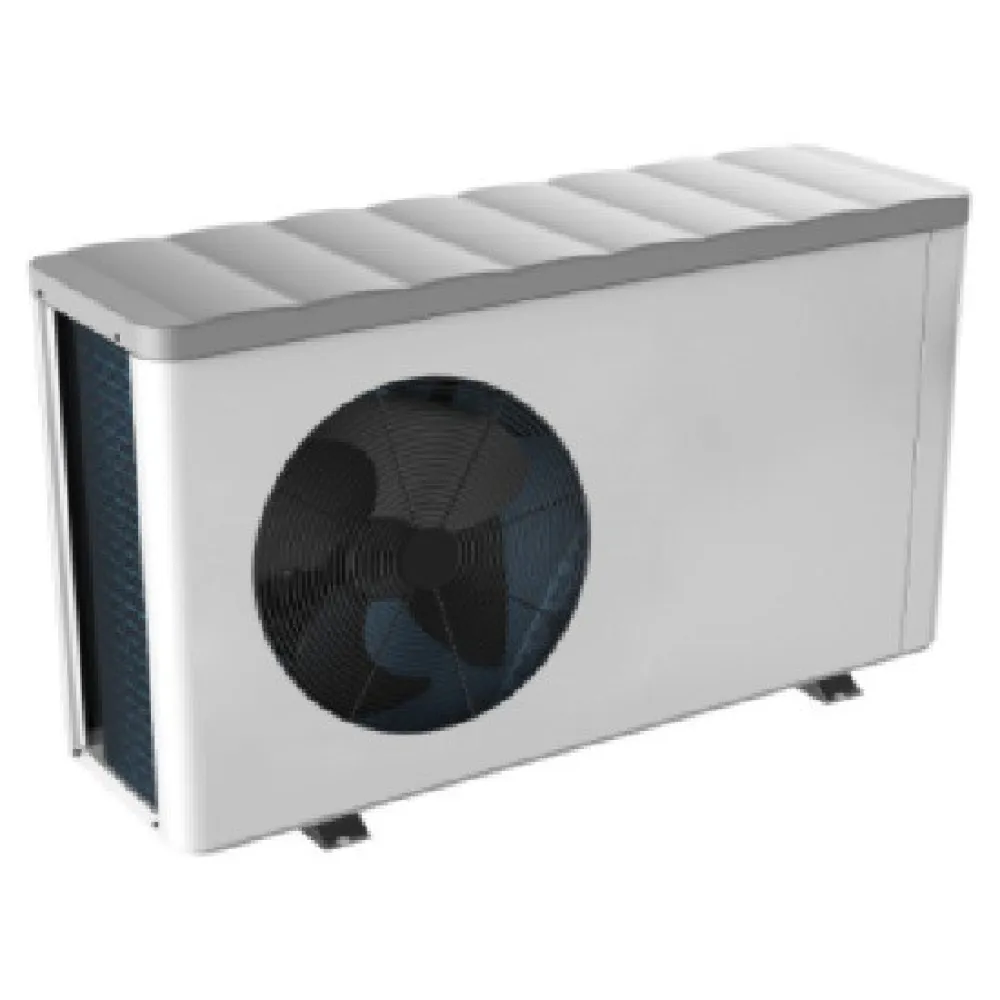

FSP-14 14kW Heat Pump

Features:

– +7°C minimum air operating temperature
– Quick water connections
– Galvanized steel body
– Galvanized steel body with ABS top
– Metal grid fan
– LCD display
– Heating function ensured outside of filtration hours
– Automatic defrosting
– Titanium water exchanger, compatible with salt water treatment
– On-off compressor, Rotary vane
– Included 3.5m power cable (without plug)

Accessories Included In The Pack:
– Winter cover
– Quick water connections, compression, Ø 50
– Condensate drain kit
– U-shape anti-vibration feet

Specifications:

– Dimensions (mm): 1095*410*699
– Weight (kg): 77

Performance: Air 28°c / Water 28°c / Humid. 80%:
– Operating power (kW): 14
– Consumed power (kW): 2,6
– COP: 5,4

Performance: Air 15°c / Water 26°c / Humid. 70%:
– Operating power (kW): 9,5
– Consumed power (kW): 2,3
– COP: 4,2

Technical Specifications:

– Recommended water flow (m3 /h): 6
– Hydraulic connection: Quick water connections, compression, Ø 50
– Electric power supply: 220-240V / 1 N~ / 50Hz
– Nominal operating power (A): 11,5
– Recommended cable power section (mm²): 3 x 2.5
– Refrigerant fluid: R32
– Refrigerant fluid quantity (kg): 0,85
– Acoustic Power (dB(A)): 68
– Acoustic pressure at 10m (dB(A)): 37
– Recommended section for a maximum length of 20 meters.
– According to EN60704-1:2010+A11:2012 standard
